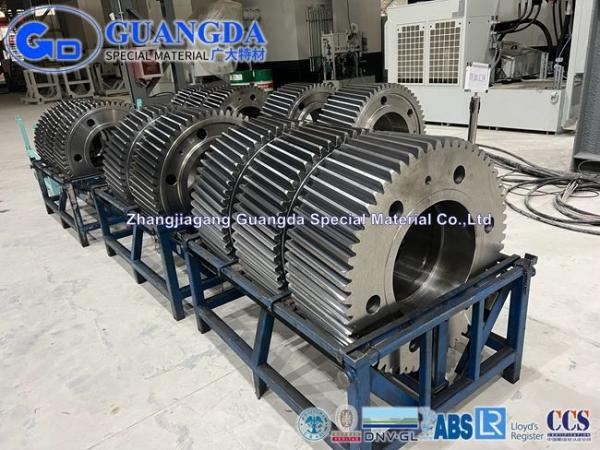

Gear Planet Customized Gear Precision Gear Manufacturing Company

Wind power gear is one of the components with the highest technical content in wind turbines. Guangda through continuous and high starting point technical transformation, the majority of the company has introduced world-class high-precision equipment, established a complete quality management system and after-sales service network, and dedicated itself to providing users with high-quality products. Quality products and satisfactory service.

A gearbox is often used in a wind turbine to increase the rotational speed from a low-speed main shaft to a high-speed shaft connecting with an electrical generator. Gears in wind turbine gearbox are subjected to severe cyclic loading due to variable wind loads that are stochastic in nature. Gears are the key compotence for the geax box .

Wind power gears Specification

Max diameter	5000mm
Gear module	5-40
Material	18CrNiMo7-6, 30CrNiMo8,17CrNiMo6,34CrNiMo6, 18CrNiMo7,42CrMo4 etc
Process capacity	Turning, milling, boring ,gringding, completed machining, gear Gear Shaping ,Gear Hobbing, Gear Grinding capability.
Heat treatment	Quenching and tempering, gear teeth induction quenching, nitriding, carburization
Annular Capacity	30000pcs

Wind power gears specification

External Gears and external splines
	Milling	Hobbing	Shaping	Tooth grinding
Max O.D	5000mm	1200mm	2000mm	5000mm
Max face width	2200mm	1600mm	1100mm	2200mm
Max module	M35	M35	M24	M40
AGMA leval/DIN leval	DIN3962 CLASS 7	DIN3962 CLASS 7	DIN3962 CLASS 8	DIN3962 CLASS 3
Tooth surface finishing	Ra3.2	Ra3.2	Ra3.2	Ra0.4
Max helix angle	+30°/-45°	±45°	0°	±45°

Internal gears and internal splines
	Milling	Shaping	Tooth grinding
Max O.D.	5000mm	2400mm	5000mm
Max Face Width	2200mm	1100mm	2200mm
Max module	M35	M24	M35
AGMA leval/DIN leval	DIN3962 CLASS 8	DIN3962 CLASS 8	DIN3962 CLASS 4
Tooth Surface finishing	Ra3.2	Ra3.2	Ra0.4
Max helix angle	+30°/-45°	0°	±45°

Precision Gears we could provide

	Planetary Gear Planetary gears, also called epicyclic gear trains, are used in complex applications that require smooth torque transmission, such as drivetrains and automotive transmissions. The spur gear used by planetary gears is called a “sun spur,” which is surrounded by three-plus exterior gears called planet gears
	Internal Gear Planetary gears, also called epicyclic gear trains, are used in complex applications that require smooth torque transmission, such as drivetrains and automotive transmissions. The spur gear used by planetary gears is called a “sun spur,” which is surrounded by three-plus exterior gears called planet gears
	Spur Gear The spur gear, also called a straight-cut gear, is the simplest type of gear available. Straight-sided along the gear wheel’s axis, with straight teeth in line with the axis. Other types of spur gears transmit motion and torque laterally through compatibility with other parallel aligned gears. Such gears are main components in planetary gears.
	Spline Gear Spline gears are either cylindrical or rod-shaped with straight teeth that allow them to transmit motion laterally by fitting inside internal devices or gears.
	Helical Gear Helical gears are fast rotating gears capable of supporting heavy loads efficiently and smoothly. They feature teeth inclined towards the axis of the shaft and positioned like a helix, thus the name. Quieter than many other gears, including spur gears, helical gears are popular with applications that feature both radial loads and thrust loads.
	Double helical gear Double helical gears are a type of helical gear that has two helical faces next to each other with a gap between them. The helix angles on each face are identical but opposing. The use of a twin helical gear set lowers thrust loads and allows for even more tooth overlap and smoother operation.

Precision gears application

Rail Vehicles	Oil and gas
Mining machinery	Cement mixer
Power Generation	Turbo
Hydro power	Wind turbine
Metallurgy machinery	Sugar machinery
Marine and shipbuiding	Machine tools
Recycling and processing plants	Rubber and plastics
Locomotive	Feeding machinery

About Guangda for the gears manufacturing

1. Professional manufactuer for the gears with efficient technical team with an emphasis on cost effective production.

2. Guangda has material line and machining line could provide gear blanks and finished gears .

3. Customerized and one-stop to meet customer's requirements, provide the overall solution to customers .

4. More than 100 sets of professional gear machining equipment including PAMA,Gleason,Danobat,Kehren,Nicolas,Pierto carnaghi of the most advanced equipment in the world.

5. More than 70 sets of the gear heat treatment equioments including the nitriding ,tempering and carbonization for the gears .

6. Guangda is the largest supplier to the world's top three customers NGC,ZF and Siemens for the gear box parts.

7. In Chinese market, Guangda wind turbine gear steel ranks first in China for the capacity, quality and market share.

Guangda is a leading manufacturer of gear box parts of the manufacturing specializing in gear box parts forging and precision machined and custom solutions in a variety of sizes and types. We provide different kind of products for the gear box parts including planet shaft ,sun shaft ,planet gear, internal ring gear, planet carrier ,head cover ,turque arm etc.

Completed supply chain--Guanda has the ability from Material of smelting ,forging ,heat treatment to the precision machining and the final surface treatment.

Comparing with companies who only make the material , we directly face the end customers and better understand customer's demand. Compared with comapanies who only do the processing, we can accurately control the quality of materials to meet the technical requirements of customers. In this way we could provide a holistic solution and control the cost of the whole process, meet the delivery time, and resist market risks.

Guangda pursues excellence & innovation with tight quality control & the most advanced technology in the industry.

All products are manufactured with the most advanced and modern equipment of PAMA,Gleason,Danobat,

Kehren,Nicolas,Pierto carnaghi and efficient technical team with an emphasis on cost effective production.

Guangda has deep and long cooperation with NGC ,Voith ,Flender and ZF for supplying the gear box parts . In Chinese market, Guangda wind turbine gear steel ranks first in China for the capacity, quality and market share .And Guangda is the largest supplier to the world's top three customers NGC,ZF and Siemens for the gear box parts.

Gear Planet

Customized Gear

Precision Gear Manufacturing Company

Zhangjiagang Guangda Special Material Co.,Ltd was established in 2003.  We located in Jiangsu Province beside Shanghai. Act as the high-tech enterprises with high-quality special alloy materials as the core business belong to the "advanced iron and steel materials" industry under the strategic emerging industries supported by the state.

 1. Headquarter Zhangjiagang 220.000㎡                                   2. Rugao Base 420.000㎡

 3. Zhangjiagang Precision Manufacturing Base 200,000㎡     4. Deyang Base 350.000㎡

Guangda Main products.

1. Material :
Gunagda has formed more than 10 core technologies in material melting technology and has internationally advanced heat treatment production lines from smelting and forging. Annual capacity for high quality alloy ingot 500,000 tons .Guangda provide high quality gear steel, high quality die steel, special stainless steel, high temperature alloy, ultra-high strength steel and other new material products encouraged by the state.

2.Forgings:
Guangda provide different forgings of shaft ,gear blank , ring rolling, rough machining, heat treatment and finish machining. Our annual production capacity is 500,000 tons for various of free-die forgings, ring rollings .Guangda forgings are widely used in high-end equipment manufacturing industries such as new energy wind power, rail transit, mechanical equipment, aerospace, new energy power, gas turbine, Marine petrochemical, semiconductor chip equipment and so on.

3.Castings:
Our business mainly focuses on large casting equipment, and our products mainly include large wind turbine castings, large equipment and equipment castings, large plastic machinery castings, and large shell castings with a total annual capacity of 210,000 tons. We have formed a whole industrial chain of smelting, casting, machining and surface treatment, and our technology and cost control are leading in the world.

4.Precision machining parts:
Through continuous and high starting point technical transformation. Guangda has introduced world-class high-precision equipment for the gears manufacturing, established a complete quality management system and after-sales service network, and dedicated itself to providing users with high-quality products. Quality products and satisfactory service.​All products are manufactured with the most advanced and modern equipment of PAMA,Gleason,Danobat,Kehren,Nicolas,Pierto carnaghi and efficient technical team with an emphasis on cost effective production.Guangda pursues excellence & innovation with tight quality control & the most advanced technology in the industry.
